HangOn AB Products Hooks Plane hooks Standard hooks (PDV)

PDV

Standard hooks

  • V-shape gives more stable hanging

  • Easy to use, low sloped ends

  • Avoids shadowing by good distance to hanging point but is still strong

  • Defined hanging point gives safe grounding and more turns in the line

  • Modularized boxes

  • Separated by paper layers for easier picking due to automated packaging

Link to load table hooks

Product table

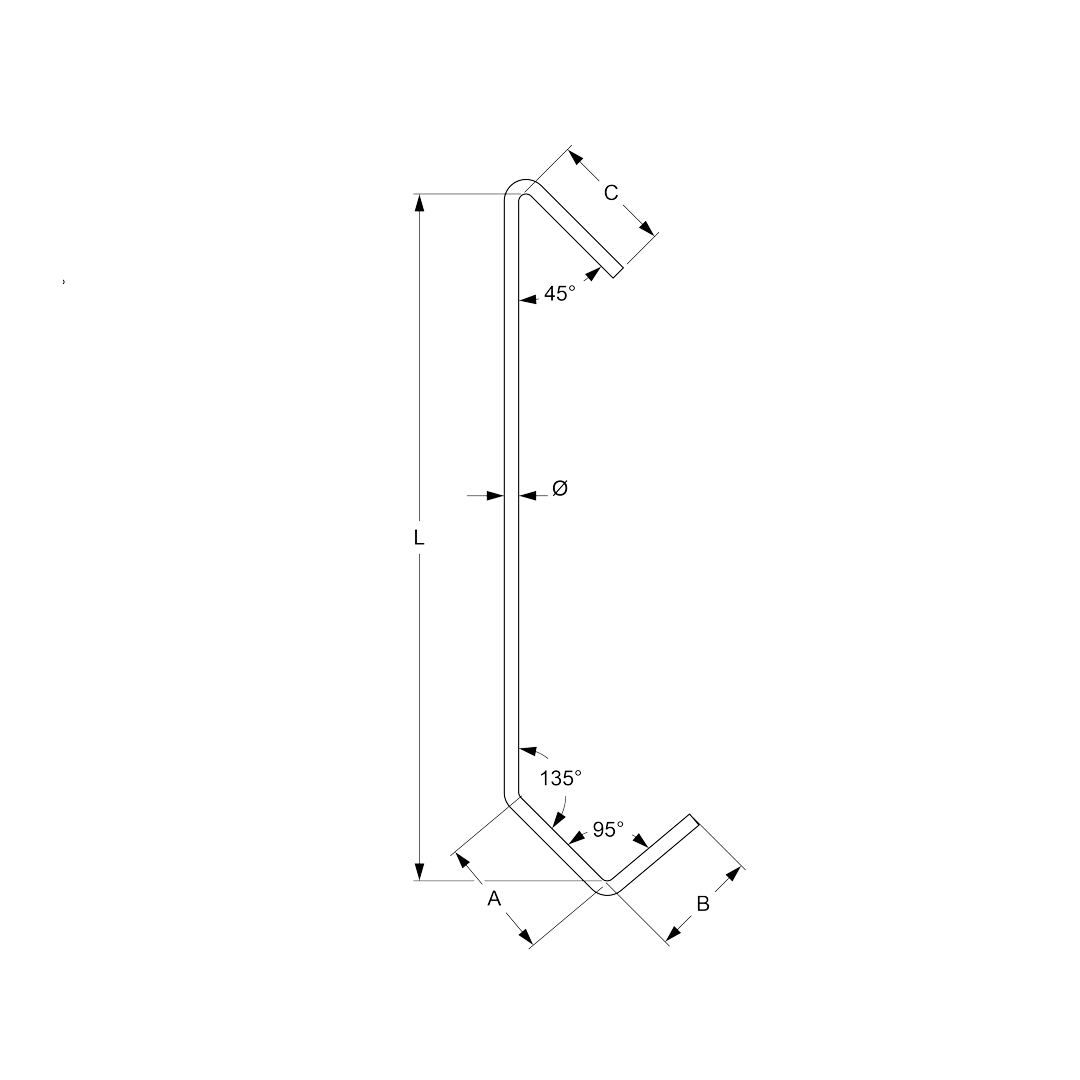

Prod No. Qty per box L x Ø mm A, mm B, mm C, mm PDF
100X2,0 90DV ** 2000 100X2,0 17 15 17
120X1,1 PDV ** 2500 120X1,1 17 15 17
120X1,5 PDV ** 2000 120X1,5 17 15 17
150X3,0 PDV ** 900 150X3,0 18 18 18
200X1,5 PDV ** 2600 200X1,5 17 15 17
200X10,0 PDV ** 100 200X10,0 ? ? ?
250X1,5 PDV ** 2400 250X1,5 17 15 17
250X3,0 PDV ** 900 250X3,0 18 18 18
300X1,5 PDV ** 1800 300X1,5 17 15 17
300X2,0 PDV ** 1400 300X2,0 17 15 17
300X3,0 PDV ** 800 300X3,0 18 18 18
350X1,5 PDV ** 2400 350X1,5 17 15 17
350X2,0 PDV ** 1600 350X2,0 17 15 17
350X3,0 PDV ** 1000 350X3,0 18 18 18
400X1,5 PDV ** 2400 400X1,5 17 15 17
400X2,0 PDV ** 1400 400X2,0 17 15 17
400X3,0 PDV ** 800 400X3,0 18 18 18
400X4,0 PDV ** 500 400X4,0 20 20 19
450X1,5 PDV ** 3000 450X1,5 17 15 17
450X2,0 PDV ** 2000 450X2,0 17 15 17
450X3,0 PDV ** 1000 450X3,0 18 18 18
500X1,5 PDV ** 2100 500X1,5 17 15 17
500X2,0 PDV ** 1500 500X2,0 17 15 17
500X3,0 PDV ** 800 500X3,0 18 18 18
500X4,0 PDV ** 600 500X4,0 20 20 19
550x1,5 PDV ** 3000 550X1,5 17 15 17
550x2,0 PDV ** 2100 550X2,0 17 15 17
550x3,0 PDV ** 1100 550X3,0 18 18 18
600x1,5 PDV ** 2400 600X1,5 17 15 17
600x2,0 PDV ** 1800 600X2,0 17 15 17
600x3,0 PDV ** 900 600X3,0 18 18 18
600x4,0 PDV ** 500 600X4,0 20 20 19
650X3,0 PDV ** 1200 650X3,0 18 18 18
700x1,5 PDV ** 2800 700X1,5 17 15 17
700x2,0 PDV ** 1600 700X2,0 17 15 17
700x3,0 PDV ** 900 700X3,0 18 18 18
700x4,0 PDV ** 500 700X4,0 20 20 19
800x1,5 PDV ** 2700 800X1,5 17 15 17
800X2,0 PDV ** 950 800X2,0 17 15 17
800X3,0 PDV ** 450 800X3,0 18 18 18
800X4,0 PDV ** 500 800X4,0 20 20 19
900X1,5 PDV ** 4000 900X1,5 17 15 17
900X2,0 PDV ** 2000 900X2,0 17 15 17
900X3,0 PDV ** 1200 900X3,0 18 18 18
1000X2,0 PDV ** 800 1000X2,0 17 15 17
1000X3,0 PDV ** 450 1000X3,0 18 18 18
